What Screws to Use for Kitchen Wall Cabinets: Expert Guide

For most kitchen wall cabinets attached to wood studs, the best choice is a #8 or #10 coarse-thread cabinet screw, usually 2½ to 3 inches long (64–76 mm). Use a flat head that sits flush and a corrosion-resistant finish such as zinc plating.

That is a reliable default, not a universal rule. The cabinet manufacturer’s instructions, the screw holes provided in the cabinet, the wall thickness, and the material behind the wall always take priority. A 3-inch screw can be perfect through a thin hanging rail and dangerous through a thick backer board positioned over wiring. You can also read our guide on wine making yeast for sale.

In practice, choosing the right screw is less about finding a universal “cabinet screw” and more about ensuring that every fastener lands in solid support, fits the cabinet, penetrates the wall correctly, and does not hit a hidden utility.

If you are replacing existing cabinets rather than starting with an empty wall, begin with a careful removal sequence so you can inspect and repair the exposed wall before selecting fasteners. You can also read our guide on how to paint high walls above kitchen cabinets.

The screw head should finish flush with the cabinet’s mounting surface.

Best Screw Choice at a Glance

The best screw depends on where the cabinet is being attached:

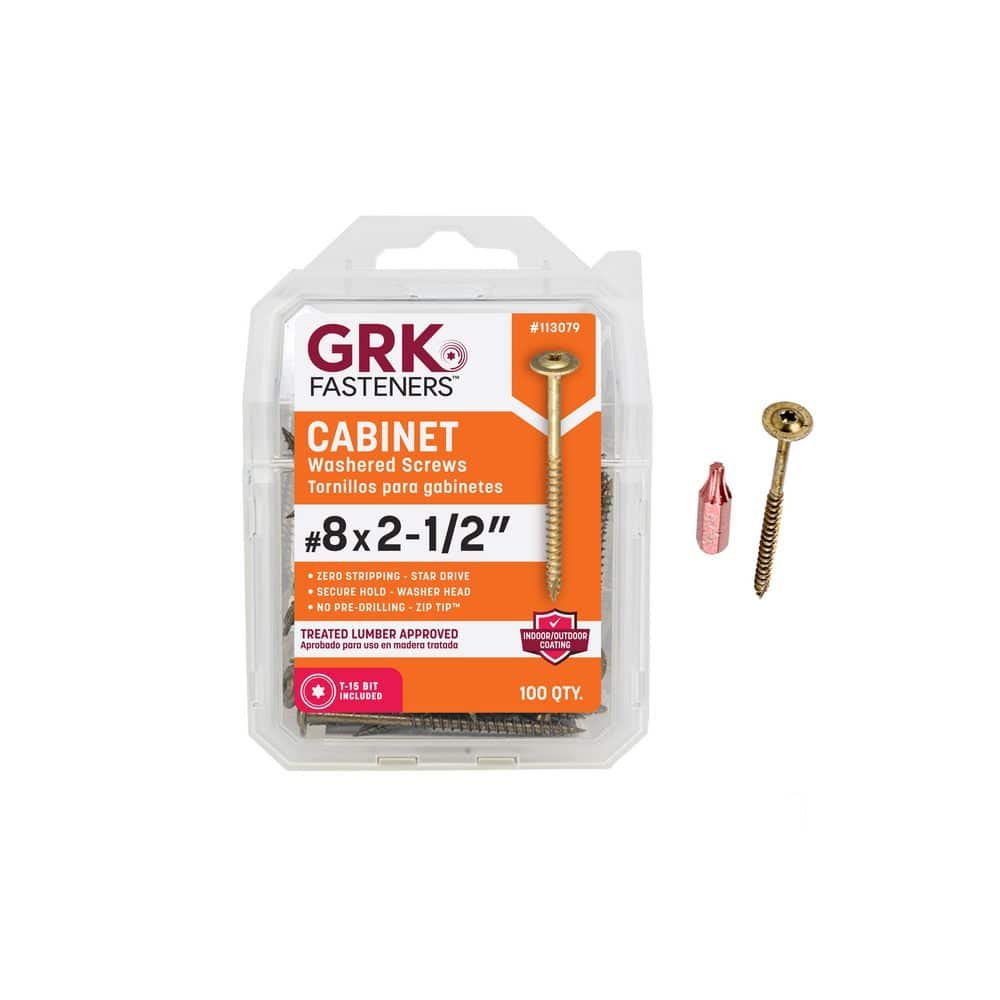

For a typical wood-framed wall, choose a flat-head, coarse-thread cabinet screw in #8 or #10 gauge. “#10” means a thicker screw than #8, not a ten-inch screw. A thicker screw is not automatically better; it can split a hardwood rail or particleboard cabinet back if the hole and torque are wrong.

Screw finish is secondary to correct sizing and placement, but it still matters. Standard zinc-plated carbon-steel cabinet screws are normally sufficient in a dry interior. Stainless or a high-quality coated screw makes more sense where moisture, condensation, salt exposure, or repeated wet cleaning is a concern. You can also read our guide on what color to paint kitchen walls with gray cabinets.

How Screw Size and Length Affect the Hold

Choosing Between #8 and #10

Both #8 and #10 screws can work well in wood studs. Use the cabinet’s existing holes, rail thickness, and manufacturer’s specifications to decide between them.

A #10 screw offers more resistance to bending and may be useful in a thick hardwood mounting rail. However, it also requires a larger, accurately sized pilot hole and more control when driving. It will not compensate for a screw that misses the stud or an anchor with an inadequate load rating. You can also read our guide on how to build a kitchen wall cabinet.

A #8 screw is often easier to install in thinner rails and backs. It is generally sufficient for standard upper cabinets when driven into solid wood at more than one approved point. If the cabinet is heavy, has glass doors, or is tall, fastener count and support placement matter much more than moving from #8 to #10.

Do not enlarge a factory-drilled hole simply to accommodate a #10 screw if the cabinet supplier specifies #8. An oversized hole reduces the screw’s bearing surface and may leave the head unsupported. You can also read our guide on grey kitchen cabinets what colour walls.

Calculating the Correct Screw Length

Use this working equation:

Screw length = cabinet material at the screw entry + wall thickness + desired penetration into structural support

For example, a cabinet with a ¾-inch hanging rail mounted over ½-inch drywall has a combined thickness of 1¼ inches. A 2½-inch screw will therefore leave approximately 1¼ inches engaged in the stud. A 3-inch screw will leave approximately 1¾ inches.

That extra length is not automatically necessary. It may be appropriate in a thick rail, but it also increases the chance of striking wiring, plumbing, fireblocking, or the back of the stud. Never calculate engagement from the screw’s total length alone; the screw must pass through solid wood, not drywall, tile adhesive, empty wall cavity, or a metal stud that it merely punctures. You can also read our guide on how to fix wall tiles in kitchen.

For a #8 or #10 screw in a wood stud, aim for solid wood engagement specified by the cabinet manufacturer—often around 1¼ to 1½ inches when the geometry allows. Avoid relying on a short screw that barely enters the stud, but do not choose an excessively long screw merely because “more penetration” sounds safer.

Screws shorter than 2 inches are rarely the best default for a standard upper cabinet mounted over ordinary drywall, but they may be appropriate for a thin rail, a low-profile mounting system, or a manufacturer-designed bracket. You can also read our guide on how high are wall cabinets in kitchen.

Account for the Finished Wall Before Measuring

Upper cabinets are often installed after painting or tiling, but not always. Know the complete wall build-up wherever a screw will pass through it. The wall may include paint, plaster, lath, tile backer, cement board, furring strips, or a combination of these materials.

Complete the final color coat and remove accumulated kitchen grease before installing upper cabinets whenever practical. A clean, stable surface makes the cabinet easier to position and prevents the back or mounting rail from rocking. You can also read our guide on tools needed to replace kitchen faucet.

A smooth surface also helps you avoid hiding gaps with excessive caulk. Tight-fitting cabinet backs should make controlled contact with the wall; a thick bead of sealant should not be used to compensate for an uneven or damaged surface.

Plan the backsplash tile layout before establishing the final cabinet line. A thicker backsplash can affect the cabinet’s lower edge, the position of fillers, and the available space above the counters. If a mounting rail overlaps tile, it should bear against sound wall or backer—not against the edge of a brittle tile. You can also read our guide on what are good colors for kitchen walls.

Tile, cement board, and plaster are not equivalent to a wood stud. Even when one of these layers is present, the screw still needs to reach a structural support beyond it.

Match the Fastener to the Wall Construction

Wood Studs

Wood studs provide the simplest and strongest conventional installation. Locate each stud with a reliable stud finder, then mark both edges and the center so the screw will not land near an edge. You can also read our guide on how tall are kitchen wall cabinets.

Use every mounting point supplied by the cabinet manufacturer, provided that each point reaches a stud, added blocking, or a properly rated anchor. Do not install only one screw per cabinet unless the cabinet’s instructions explicitly show that design.

The typical 16-inch stud spacing can provide useful planning information, but it is not a substitute for scanning the actual wall. Remodeled kitchens may have shifted framing, added blocking, or studs positioned where the original layout did not predict. You can also read our guide on red kitchen walls what color cabinets.

No Stud Behind the Cabinet

Drywall and plaster alone are not structural cabinet supports. If a screw point does not reach a stud, use either:

• Solid blocking installed between studs
• A heavy-duty hollow-wall anchor rated for the loaded cabinet
• A manufacturer-approved cabinet mounting rail designed for the condition

Solid blocking is often the best long -term solution when framing is exposed because it gives the cabinet rail a continuous, solid connection. Install blocking securely to the existing studs; do not simply screw a loose piece of timber into the wall cavity. If opening the wall is impractical, use a purpose-designed mounting rail or anchors approved for the expected cabinet load and wall thickness.

Plastic strip anchors and small picture-hanging devices are generally poor choices for a loaded upper cabinet. A properly installed metal toggle or snap-toggle can work, but its rating must cover the cabinet, contents, and repeated use. Follow the anchor manufacturer’s installation requirements for drywall thickness, hole diameter, screw type, and number of fasteners. Do not substitute a generic screw for the one supplied with the anchor. You can also read our guide on kitchen aprons plus size.

Anchors distribute cabinet loads only as well as the wall behind them. Brittle plaster, lath, or damaged drywall can fail even when the anchor itself is correct. If the surface is questionable, add backing or have a qualified installer assess it.

Metal Studs

Do not drive an ordinary drywall screw into a metal stud. Use a self-drilling or thread-forming screw approved for the gauge and thickness of the steel. The screw point must pass through the wall covering and penetrate the steel sufficiently to develop its specified holding strength. You can also read our guide on decoration for on top of kitchen cabinets.

Self-drilling screws come in different point styles and thread lengths. A screw designed for light-gauge steel may not have enough thread engagement in heavier studs, while an oversized point may damage thin steel. Confirm the stud thickness rather than estimating from appearance.

A practical way to verify the screw type is to test it in a concealed offcut of the same steel, or have the cabinet supplier specify the fastener. Place the bit squarely, start the screw with a drill at low speed, and use an impact driver only after the thread is established. If the screw head strips, the steel is spinning, or the point keeps walking away, stop rather than forcing it. You can also read our guide on how to install kitchen cabinets on uneven walls.

Brick, Concrete, and Masonry

Brick, block, and concrete require masonry screws or anchors. Standard wood screws, drywall screws, and general-purpose construction screws are not reliable substitutes in masonry.

Concrete screws normally require a hole drilled with a masonry bit matched to the screw diameter. Follow the fastener manufacturer’s specified embedment and drilling method; those instructions account for the screw geometry and base material. A sleeve anchor may be more practical where the face is irregular or where greater adjustability is needed. You can also read our guide on how to attach kitchen cabinets to a brick wall.

Masonry walls may conceal rebar, plumbing, or electrical conduit. Locate utilities and, where required, rebar before drilling. An overly long “masonry-grade” screw is not safer if it can strike an embedded service. Expansion behavior also matters: dense concrete can crack if a hole is undersized, while repeated loading is different from a one-time shelf installation.

For a large kitchen with heavy wall cabinets, a mason or experienced installer can confirm the wall type and help select a system appropriate for the total load. You can also read our guide on decorative anti fatigue kitchen mats.

Choose a Screw Head and Drive That Fit the Cabinet

Flat-Head Cabinet Screws

A flat-head screw is normally the best choice for a cabinet back or hanging rail. It can sit flush, allowing the cabinet to meet a flat wall without rocking on a raised screw head. The cabinet manufacturer may specify a flat-head, pan-head, or concealed mounting screw for a particular rail design; follow that specification.

A raised or pan head can be correct in a purpose-made European hinge or mounting system. It is not a problem in itself. The common mistake is using a screw head that projects through an area intended to lie flat against the wall. You can also read our guide on michel design works kitchen towels.

The flat head should finish flush or slightly below the surface. Do not countersink too deeply or enlarge the hole into a shallow recess. The unthreaded shank should pass through the cabinet without binding.

Use the Correct Driver Bit

Use a driver that matches the screw head and fits the bit holder securely. A worn or undersized bit can slip, round the head, and leave a fastener that is difficult to remove. A #2 Phillips bit commonly fits #8 cabinet screws, while a #10 screw may use a #2 or larger bit depending on its head design; the screw packaging and the physical fit are more reliable than the gauge alone. You can also read our guide on how to install a wall cabinet.

Square-drive or other high-torque heads can be useful if they match the fastener and driver. The design name matters less than using the exact matching bit, keeping the tool square, and stopping when the screw is snug.

An impact driver is helpful once a screw is properly started, but it is not ideal for the initial threading operation. In practice, starting cabinet screws with a drill at low speed gives better control and reduces the chance of over-driving. Switch to an impact driver for the final tightening only if the tool and screw head are compatible. You can also read our guide on www yoursite com what height are kitchen wall.

Pre-Drill or Don’t Pre-Drill?

The old advice to “always pre-drill” is too broad. The cabinet material, screw point, manual, and driving method determine whether a pilot hole is useful.

A sharp, correctly sized cabinet screw usually starts cleanly in plywood, hardwood, MDF, or particleboard when the cabinet is well supported. Driving an undersized or forced screw can split a thin rail, strip particleboard, or strip the driver bit. An oversized pilot hole can reduce holding power and leave the screw head with little material around it. You can also read our guide on what size screws for kitchen wall cabinets.

Use a pilot hole in the cabinet when:

• Its instructions require one
• The screw is larger than the factory opening
• You are installing near a visible edge or end of a brittle panel
• A test in an offcut shows that the selected screw splits the material
• You are using a poorly supported cabinet while positioning the first fasteners

A pilot hole in the structural stud or blocking is generally unnecessary for a standard sharp-point wood screw. Drilling deeply into the stud does not automatically improve holding power and increases the risk of striking something on the back. Use a pilot in the wall only when the wall material, anchor system, or fastening manufacturer requires it.

If predrilling is necessary, use a bit that allows the screw’s threads to engage the cabinet material. Do not drill a hole equal to the outside diameter of the screw shank; that can make the head pull through instead of compressing the wood. Test the diameter in a scrap of the same cabinet material whenever the fastener and cabinet construction are unfamiliar. You can also read our guide on how to retile a kitchen wall.

Keep the cabinet supported while driving screws. Clamping a rail without protective pads can dent the finish or distort the cabinet. Tighten until the head is seated and the joint is firm, then stop. Continued rotation can strip the screw, crush particleboard, or pull the head into the cabinet back.

Screw Material and Finish

Zinc-Plated or Coated Steel

Zinc-plated or polymer-coated carbon-steel screws are the normal practical choice for a dry, enclosed kitchen. They provide adequate strength, are widely available, and cost less than stainless steel. Buy screws specifically labeled for cabinet or construction work, with a flat head and coarse threads suited to wood. You can also read our guide on how to install ikea kitchen cabinets on wall.

Coating quality varies. A thin decorative finish may chip during installation or later expose steel to moisture. Store screws dry, avoid placing damp fasteners in a metal toolbox, and do not use exterior screws that are much larger than the cabinet holes merely because they are coated.

Stainless Steel

Stainless steel is useful near sinks, dishwashers, coastal homes, or other damp environments where ordinary plated steel may eventually show corrosion. It also resists staining when the screw head is visible. However, stainless steel is not automatically required for every kitchen cabinet, and it is usually a premium choice rather than a necessary safety upgrade. You can also read our guide on how to install wall mounted kitchen cabinets.

The stainless grade matters in highly corrosive settings, but the head and thread design are equally important. Stainless screws can be harder to drive and may gall if a mismatched bit is used. Use matched, undamaged tooling and do not press excessively hard if the head begins to turn.

Manufacturer resources such as SPAX’s cabinet fastener guidance can help distinguish screw geometry. The cabinet manufacturer’s mounting instructions still control the installation. You can also read our guide on how to remove kitchen cabinets without damaging wall.

Avoid Mixing Finishes for No Reason

There is little value in paying for stainless screws if they are driven into predrilled holes with a mismatched bit and then coated with an incompatible product. Choose the simplest finish that suits the wall location and expected moisture exposure, then install it correctly.

A level, stud finder, suitable driver, and the correct fasteners should be ready before the cabinets are lifted.

How to Install the Screws Safely

Before lifting the cabinet, complete the surrounding work. If painting is planned, allow the selected paint system to cure sufficiently, remove dust, and clean grease from the mounting area. Thorough surface preparation is particularly important in a cooking zone because a thin film behind an upper cabinet can hold dirt and interfere with later cleaning. You can also read our guide on ideas for decorating over kitchen cabinets.

Use a temporary support, cabinet installation rail, or a helper so the cabinet does not fall while the first screws are started. Do not try to hold a loaded cabinet in position with one hand while locating studs with the other.

Follow this sequence:

1. Confirm the wall structure. Identify studs, blocking, anchors, metal framing, or masonry before ordering screws. If the wall must be opened to add proper backing, understand exposing the wall safely before cutting finishes or concealed services.
2. Position the first cabinet temporarily. Mark the stud edges and center, mark the fastener locations, and hold or clamp the cabinet securely.
3. Check every screw path. Measure the cabinet material plus the full wall build-up. A longer screw is not automatically stronger.
4. Start at a support point. Drive the first screw with a drill at low speed while supporting the cabinet. Verify that the screw enters solid support rather than the gap beside a stud.
5. Install the remaining manufacturer-supplied fasteners. Work across the rail to keep the cabinet square. Do not skip a hole simply because one nearby screw feels tight.
6. Use anchors only where required. In an anchored area, install the exact specified anchor through its approved hole and keep the screw head fully seated.
7. Tighten without crushing the cabinet. Stop when the fastener is firm. Over-tightening does not add meaningful holding power.
8. Level, plumb, and recheck. Do not pull a cabinet out of square simply to match uneven plaster. Correct the wall or add backing instead.
9. Connect neighboring cabinets. Use the cabinet supplier’s joining hardware and alignment method. Do not rely on two separate wall fasteners to compensate for a crooked cabinet.

Choose flat-head cabinet screws whose size and thread match the cabinet holes and wall support.

Special Cases That Change the Choice

Glass-Door or Tall Cabinets

A glass-front cabinet is no more structurally demanding than a solid cabinet if the glass is properly installed, but its weight and sensitivity to movement make secure, even fastening more important. Do not place a screw where it could contact the glass or door hardware. Use every approved mounting point and avoid forcing cabinet doors against the wall. You can also read our guide on cream kitchen cabinets what colour walls.

A tall cabinet may twist slightly as doors and contents move. Solid wood support, correctly spaced fasteners, and secure cabinet joining can control that movement better than simply using thicker screws. If a manufacturer specifies more fasteners than appear necessary, follow that specification.

Cabinets Mounted Over a Backsplash

A backsplash can prevent the cabinet back from touching the wall at mounting points. Depending on the design, the cabinet may sit on a scribe strip, over the tile edge, or against a surface-mounted rail. The screw must pass through the tile or backer only when the design specifically allows it and must still reach structural support. You can also read our guide on grey kitchen units what colour walls.

For a new backsplash, compare wall tile layouts before fixing the cabinet height. Existing tile should be checked for movement or loose edges; driving into a cracked slab will not create sound support.

Heavily Loaded or Shaker Cabinets

Load capacity comes from the whole system, not one screw. Consider cabinet size, shelf spacing, stored weight, fasteners, rail material, stud centering, and the number of fasteners sharing the load. A long, unsecured rail can bend even when several screws pull tightly. You can also read our guide on oak kitchen cabinets what color walls.

Wide or heavily loaded cabinets benefit from cabinets joined end to end, solid blocking, or a manufacturer-rated ledger system. Avoid placing a single anchor close to a cabinet edge where repeated movement could tear the plaster or drywall.

Common Mistakes to Avoid

The most damaging error is treating every screw as interchangeable. Drywall screws, finish nails, short wood screws, and oversized construction screws are not equivalent to a cabinet fastener. They may seem adequate while driving, yet lack the head style, corrosion protection, geometry, or load capacity required for repeated use. You can also read our guide on what color walls go with dark brown kitchen cabinets.

Another common mistake is selecting a length from the cabinet thickness alone. A screw may pass through the cabinet and drywall but still miss the stud. A stud finder can be fooled by plumbing, metal braces, or a recently patched wall. Mark both stud edges, verify the center with a small exploratory hole in a concealed location when appropriate, and never assume that a screw is in wood merely because it entered the wall.

Over-driving is equally problematic. Excess torque can strip the driver, round the screw head, crush particleboard, or create a recess that prevents the cabinet back from sitting flat. Stop as soon as the screw head is seated and the cabinet is firmly connected. You can also read our guide on flatware sets clearance.

Do not use caulk, adhesive, or extra-tight screws to compensate for an uneven wall. Fillers can hide a problem until the cabinet rocks or pulls away. Correct the wall surface, add solid backing where needed, and allow the cabinet to contact the wall evenly.

Finally, do not reuse screws from a removed cabinet. A used screw may be stripped, corroded, bent, or weakened. Replace any fastener that does not drive cleanly or cannot be removed without damaging the cabinet mounting surface. You can also read our guide on how to remove kitchen tiles from wall.

Frequently Asked Questions

What screws are best for kitchen wall cabinets?

For standard wood cabinets mounted into wood studs, use a flat-head #8 or #10 coarse-thread cabinet or wood screw, typically 2½ to 3 inches long. The correct length depends on the cabinet thickness, wall build-up, and required engagement in the stud. The cabinet manufacturer’s specifications take priority.

Are 2½-inch or 3-inch cabinet screws better?

Neither is universally better. Measure the complete material the screw must pass through. A 2½-inch screw may provide ample engagement in a thin rail over ½-inch drywall, while a 3-inch screw may suit a thicker rail or backer. Choose the shortest screw that achieves the required solid engagement without risking concealed utilities.

Can I use drywall screws for kitchen cabinets?

No. Drywall screws are intended to fasten gypsum board to framing and may snap, strip, or pull out under a loaded cabinet. Use cabinet screws into wood, self-drilling screws approved for metal studs, or masonry fasteners in brick or concrete. Drywall itself is not adequate support unless the cabinet is attached to a rated anchor system or solid blocking.

What should I do if there is no stud behind the cabinet?

Add solid blocking between studs whenever practical and secure it to the existing framing. If opening the wall is not practical, use a heavy-duty hollow-wall anchor or manufacturer-approved mounting rail specifically rated for the cabinet and its contents. Small picture-hanging anchors and lightweight plastic strips are not suitable substitutes for a loaded upper cabinet.

Should cabinet mounting holes be pre-drilled?

Usually, a correctly sized sharp-point screw starts cleanly when the cabinet is supported. Pre-drill the cabinet only when its instructions require it, the screw is larger than the existing holes, or testing shows a risk of splitting. A structural screw normally does not need a deep pilot hole in the stud.

Are stainless steel cabinet screws necessary?

They are not essential in every dry kitchen, but they are a sensible option near persistent moisture, in coastal environments, or wherever corrosion resistance is important. Zinc-plated cabinet screws remain suitable for many interior installations when stored dry and installed without damaging their coating.

Can I use construction or deck screws instead of cabinet screws?

Sometimes. A properly sized, flat-head construction screw with coarse threads can work in a wood stud, but many deck and structural screws are too large, too coarse, or have a head that prevents the cabinet from sitting flat. Cabinet screws are normally easier to control and are designed for the limited thickness of a hanging rail.

How many screws should each cabinet have?

Use every mounting point supplied by the cabinet manufacturer, provided each point lands in a stud, blocking, or approved anchor. A heavy cabinet should not be reduced to one or two fasteners for convenience. If the cabinet lacks usable instructions, or a wall point is unsupported, have an installer identify a sound fastening system before mounting.

Choose the Fastener from the Full Wall Path

The best screw for most kitchen wall cabinets is a flat-head #8 or #10 coarse-thread cabinet screw, generally 2½–3 inches long, driven through a supported cabinet rail into solid wood framing. Stainless steel is useful in damp or corrosive settings, while metal studs and masonry require fasteners designed specifically for those materials.

The decisive details are the cabinet instructions, screw head, pilot condition, wall thickness, number of fasteners, and actual structural support—not the label or packaging alone. Measure one complete screw path, locate the support accurately, and use every approved fastener before loading the cabinet.

Before buying, mark one stud and measure through a scrap of the actual cabinet rail; that quick check prevents the two costly errors: a screw that is too short and one that reaches too far.
